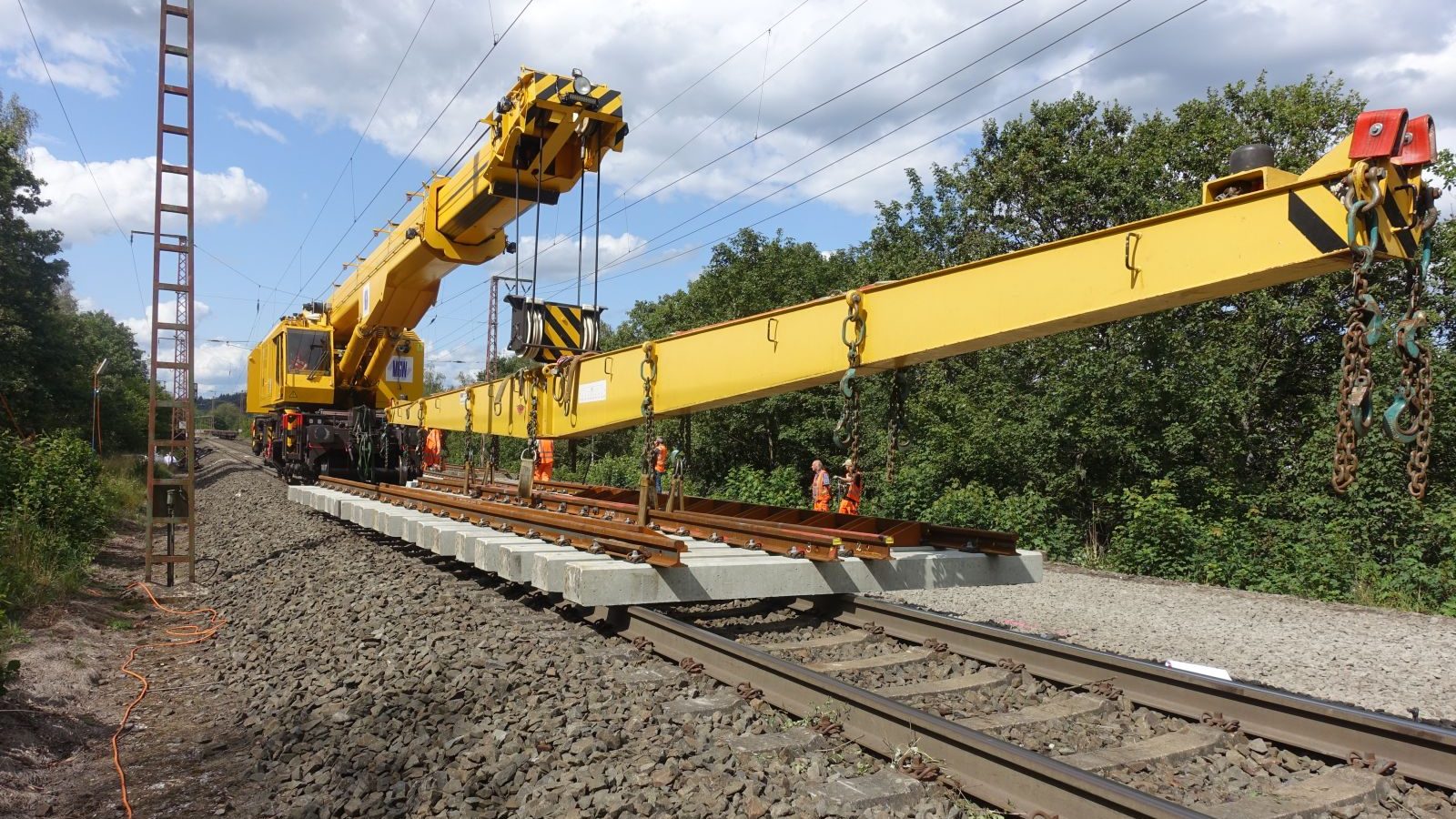

Basic Machine
Crane #1
-
Factory Nr.: 1 116 00
-
VDM Nr.: 99 80 9419 015 – 9
-
Year of Construction: 1998 – 1999
-
Manufacturer: Kirow Leipzig
Crane #2
-
Factory Nr.: 1 125 00
-
VDM Nr.: 99 80 9219 001 – 1
-
Year of Construction: 1998 – 1999
-
Manufacturer: Kirow Leipzig
Technical Data
-
Total mass: 128 t
-
Length: 13.000 mm
-
Height: 4.250 mm
-
Width: 3.100 mm
-
Number of axles: 8
-
V-Max self drive: 20 km/h
-
Maximum travelling speed: 120 km/h
-
Line category: CS05
More Information
Special Features
Advantages
Special Features
- automatic continious counter effect up to 160 mm
- electric central surveillance PAT
- programmable limiting switch for angular displacement operation
- stroke arresting device
- automatic overload lock
- drive back monitoring by camera
- degraded operation facility
Advantages
- operation without encroachment on the clearance gauge through short overhang
- lifting of heavy loads by counter effect of inclination
